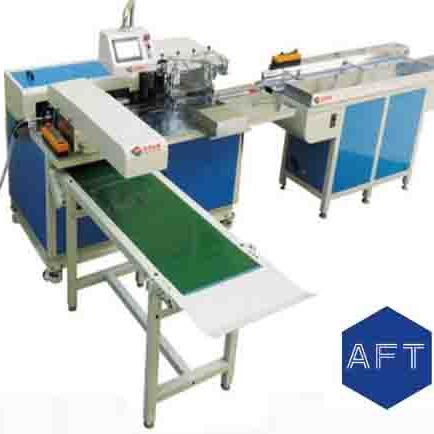

台历 挂历 笔记本全主动YO单/双线圈装订机主动绕线穿线体系的调整 Adjust the inserting system

机器出厂前已装有调试好的一套模具。当机器需求替换模具时，可依照以下过程进行。The machine is shipped with a good set of molds. When the machine needs to replace the mold, follow the steps below.
5.1  台历 挂历 笔记本全主动YO单/双线圈装订机穿线 Inserting the wire
将线穿入进线组件，通过过线轮24.1，光滑盒25，过线轮24.2,计数轮26（通过计数轮时将线绕计数轮一圈），过线轮24.3,再通过铁线整直板(如图一)，之后在芯棒上.

5.2调试 台历 挂历 笔记本全主动YO单/双线圈装订机芯棒 Mandrill adjustment
5.2.1要成形不同巨细的线圈,须选用相应的线圈芯棒,选定合适的芯棒后,先将芯棒刺进主轴并从主轴的另一端用螺丝锁紧,开机工作时,芯棒应与主轴同心.

Chose suitable mandrill according to different coil size. After install the mandrill onto the main axis with tighten screws, the mandrill should be the same concentric of the main axis when the machine is running.

5.2.2 台历 挂历 笔记本全主动YO单/双线圈装订机上有三个插针板,作用是固定线圈的齿距.插针板须定在对应的插针板座上,早年方向下编号次序为1,2,3.

There are three pieces of pin stands. Order number 1,2,3 from the front to the lower one. Pins are fixed onto the stands for supporting the teeth pitch.
5.2.3把 台历 挂历 笔记本全主动YO单/双线圈装订机插针刺进插针板上,留意针端与芯棒面须有0.05-0.15的空隙(工具箱配有塞尺).空隙过大,线材表面会刮花,如针端与芯棒合作过紧,则会刮花芯棒表面,形成坑槽,简单卡线和刮花线材.

When install the pins please keep the gap between 0.05-0.15mm (tool box has feeler gauge). Once the gap too big the wire material easy get scratched. The mandrill could be scratched the surface if the pins too closed. The mandrill the slot caused and could be damage the wire materials, too.
