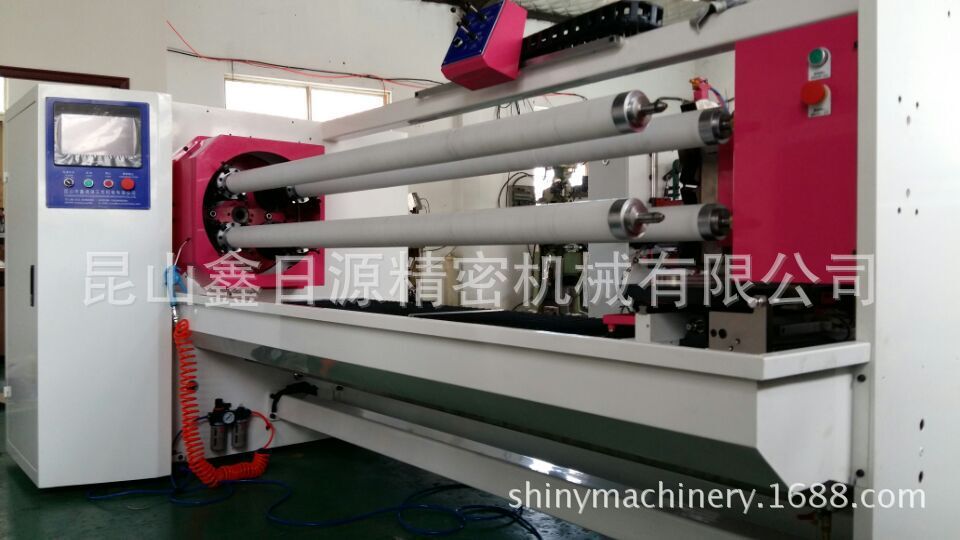

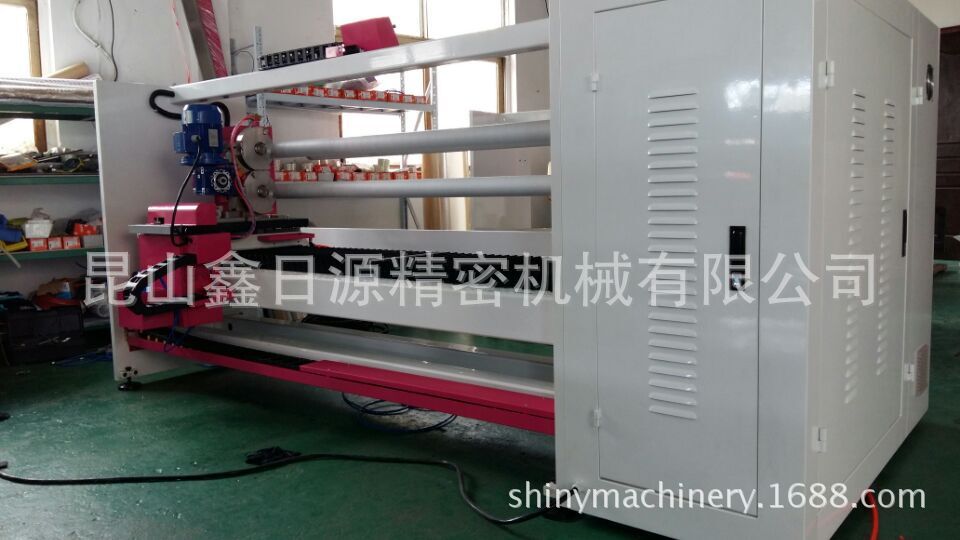

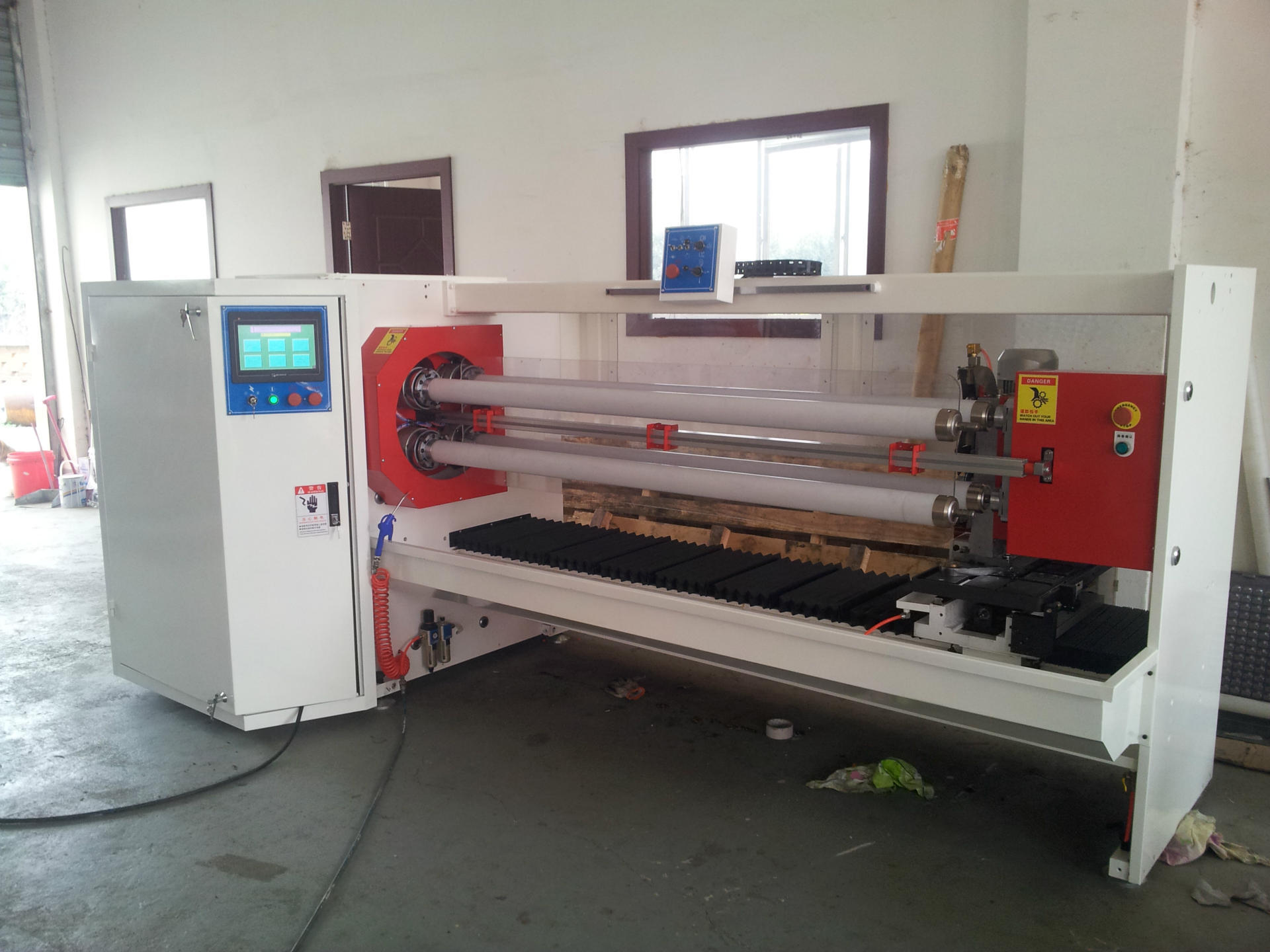

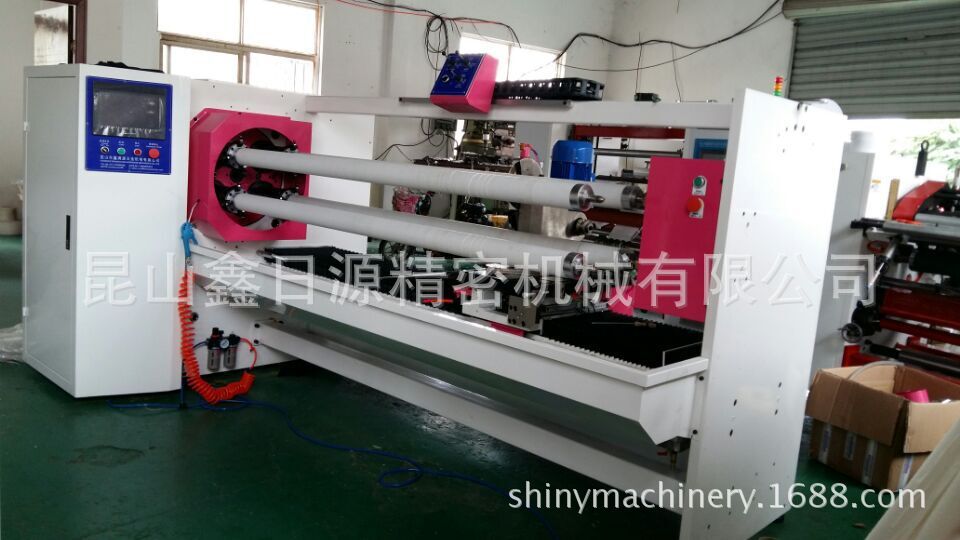

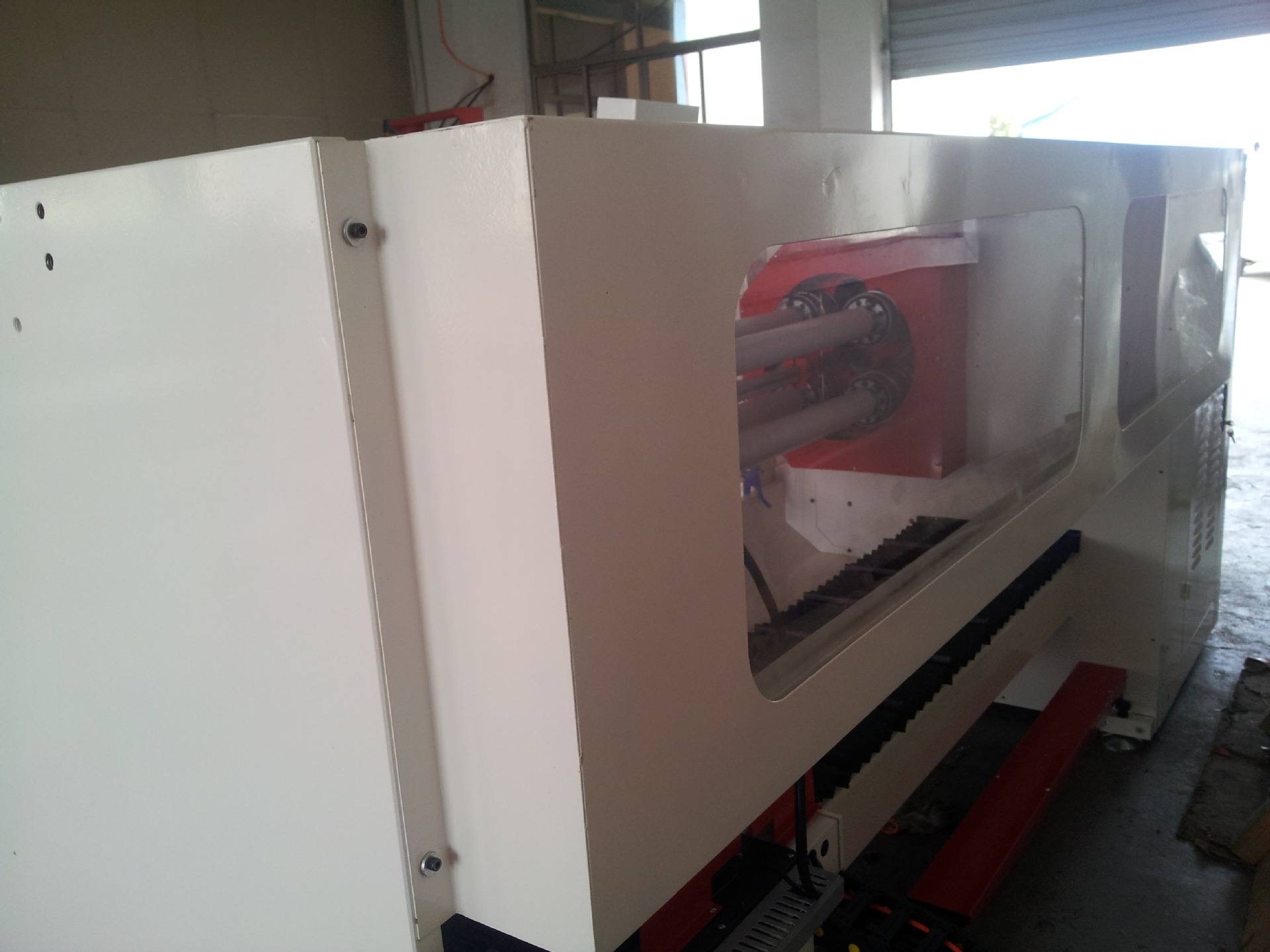

分切机供应商供应四轴分切机

用处 Application
各种胶带材料之切卷
如：双面胶带.电工胶带.美纹胶带.建筑胶带及各种特殊胶带等切卷
Suitable for cutting tape
For example: double side tape, cloth tape, masking tape and other special tapes

特色 Features

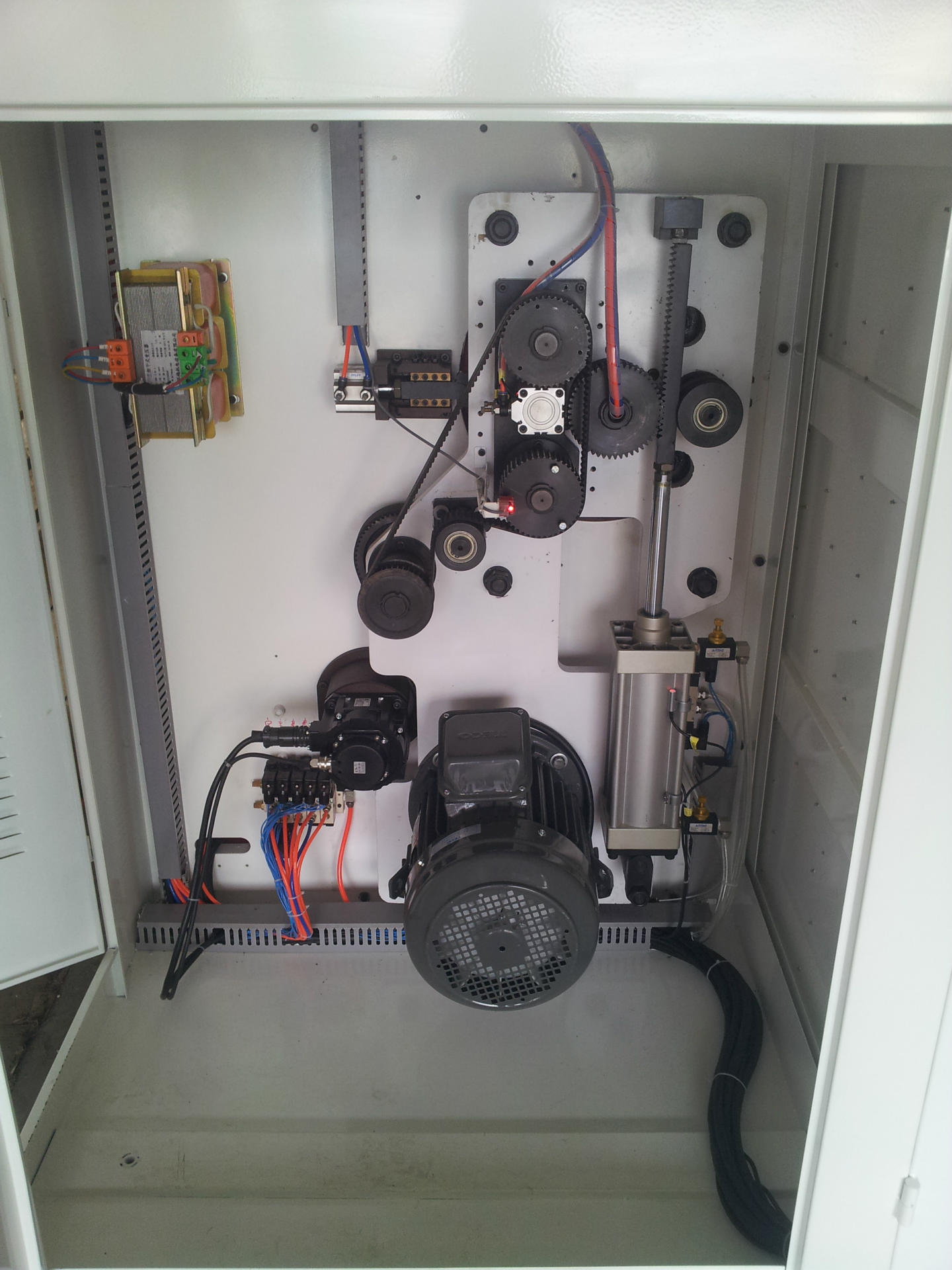

※主机传动部分：选用AC马达调配变频器做为切卷材料传动，加减速安稳快速。
※Main Motor: Cutting shaft and circular blade are driven by A.C motor with inverter control, which able to set RPM and running direction obverse/reserve on different requests.

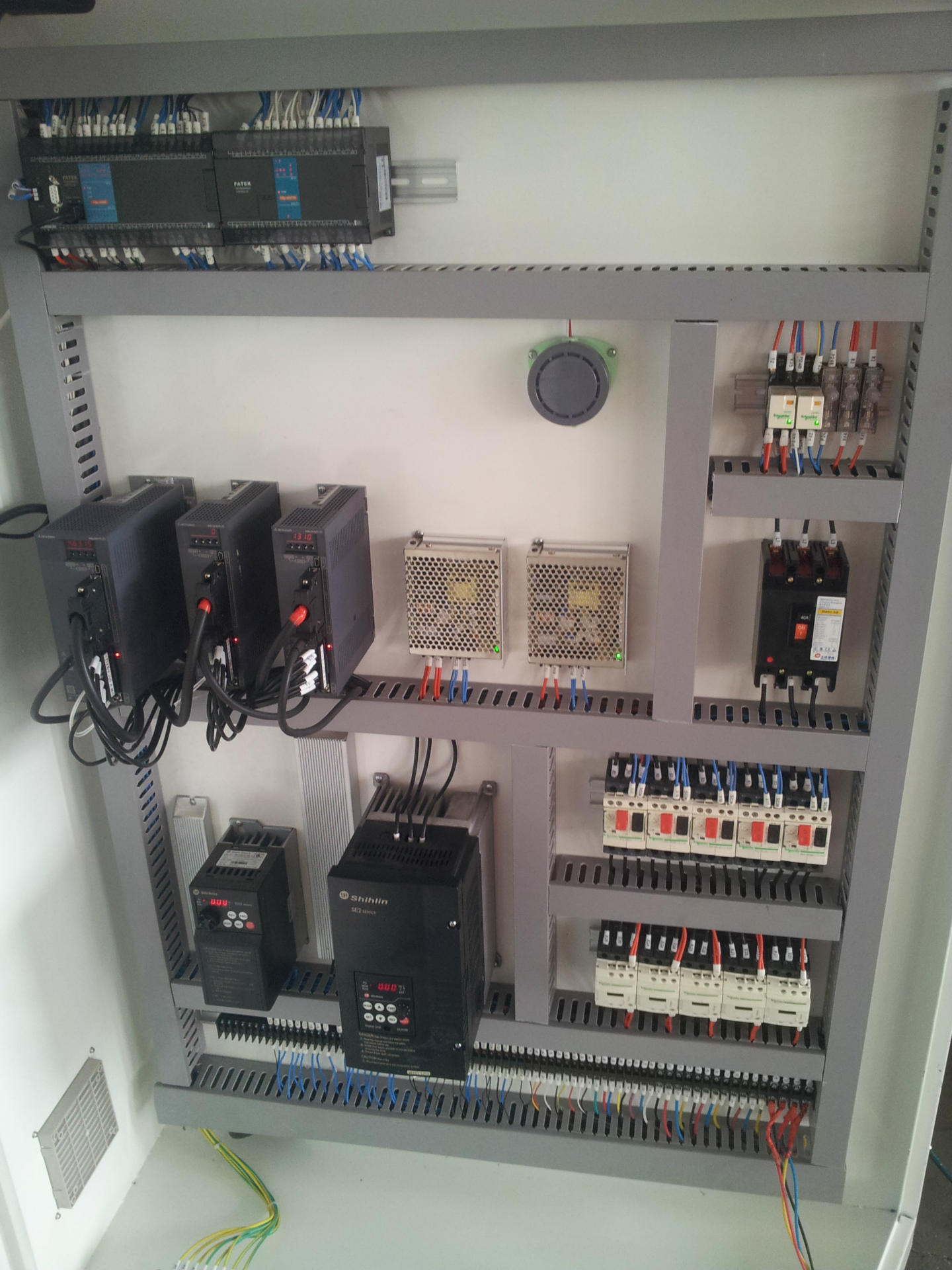

※中心操控单元：运用可程式中心操控，同轴中可设定多种尺度主动转化切开。
※Central Control: Central control system is CPU, which can cut various sizes on one log roll by changing modes automatically.
※操作面板部分：操作介面选用LCD触控屏，可直接在屏幕上设定各种切卷条件及工作情况。
※Display Mode: All functions are operated under LCD touch panel control, which is operator friendly and easy for data setting.

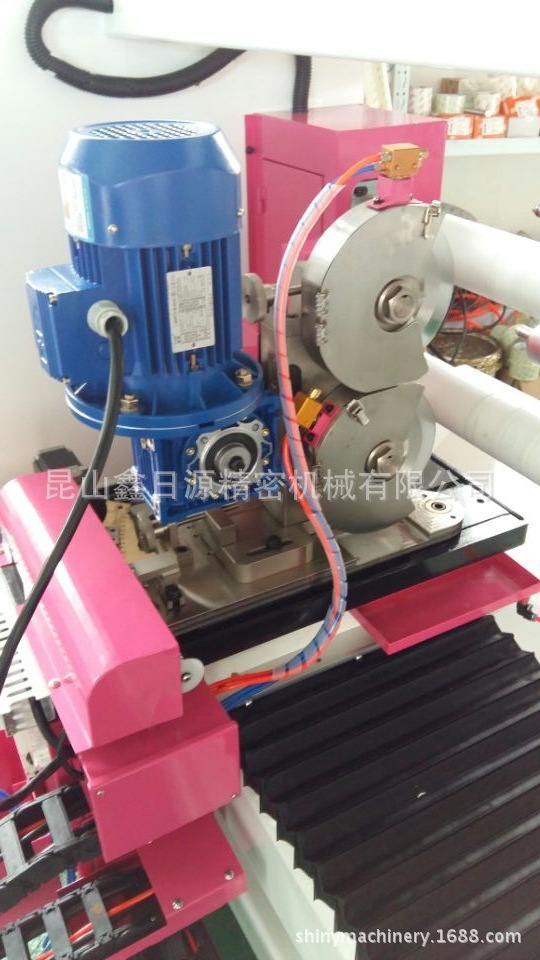

※切卷定位体系：运用伺服马达操控高精度滚珠螺杆进行尺度定位及运用线性滑轨承载刀座。定位动作准确平顺。
※Width Setting: Width setting is controlled by servomotor with ball screw and guide rails to make accuracy movement.
※进刀定位体系：运用伺服马达操控进刀方法，可拟人化做三段式速度进刀切卷。进步功率并得到最好质量。
※Cutting System: Knife feeding is controlled by servomotor, which can do three-speed cutting.
※圆刀视点调整：运用伺服马达核算圆刀视点转向，因应不同材料做不同视点改变。可削减换刀次数，进步出产功率。
※Knife Angle Adjustment: Cutting angle can be changed automatically for making roll surface smoothly.

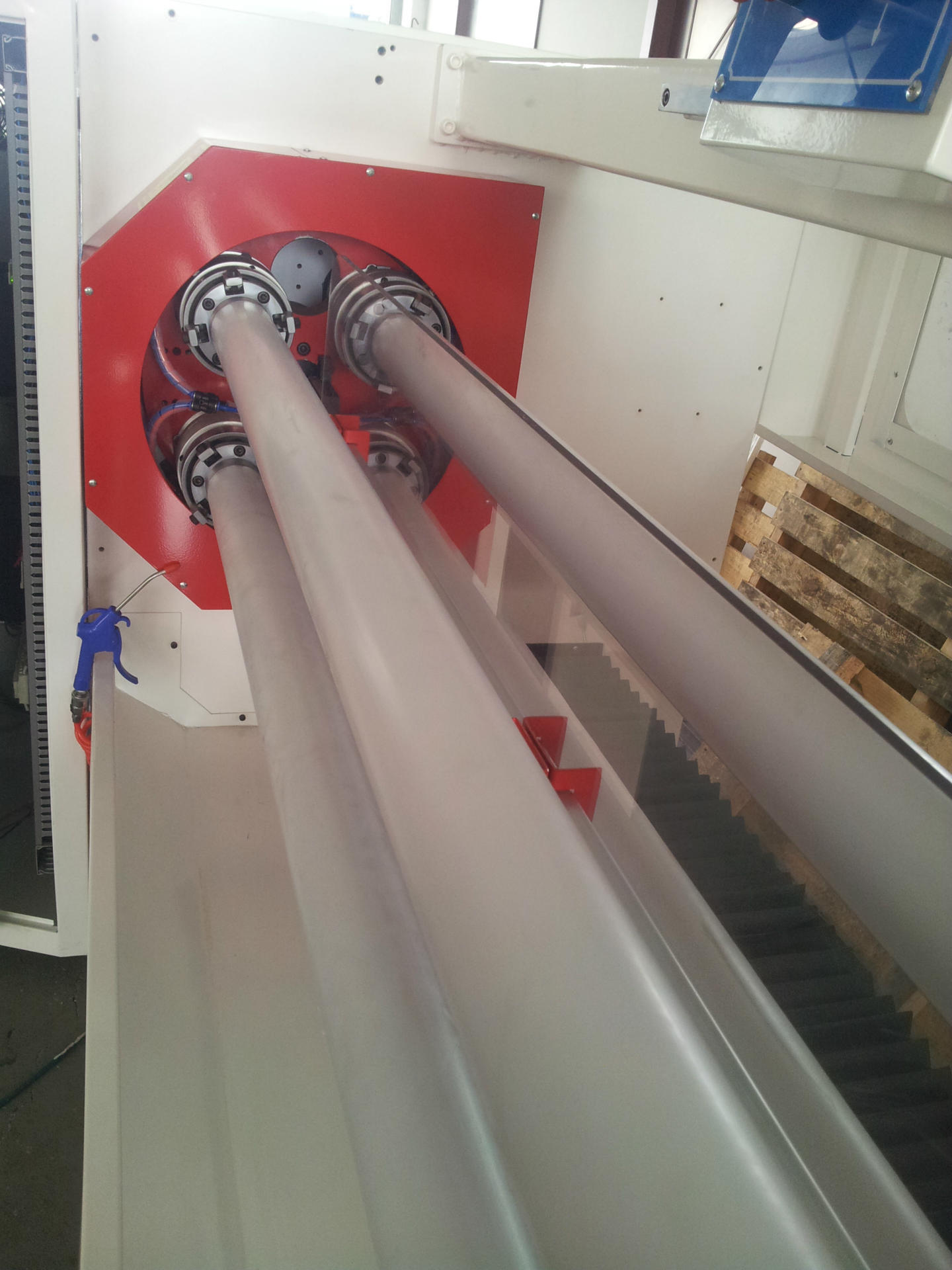

※快速换轴设备：本机器有三种切开轴可共选用，选用快速换轴方法，因应不同材料需求。
※Shaft Change: Three kinds of cutting shafts for optional using on this machine, which use quick changing shaft according to different material.

选购配件 Optional Parts
※安全护罩Safety Cover
※视点调整Angle Adjustment
※前后挡板Cutter Guard
※三段进刀Three Speed Cutting
※触控显现Touch Screen
※主动注油Automatic Fill Oil
※主动喷水Automatic Water
※圆刀驱动Blade Driving
机械规格 Specification
机械制造宽度:1M-1.6M Machine Width: 1M-1.6M
最大切卷直径:160mm Max. Cutting O.D: 160mm
切开管心外经:1'-3' Cutting Core I.D: 1'-3'
最小切卷宽度:2mm Min. Cutting Width: 2mm
