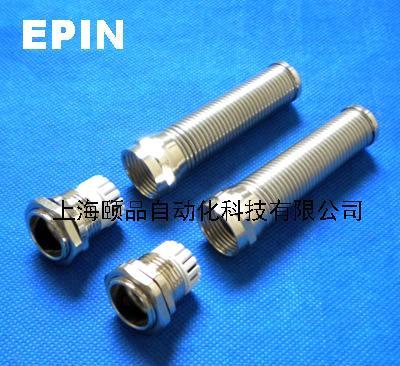

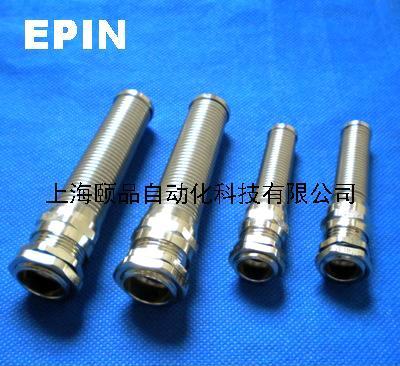

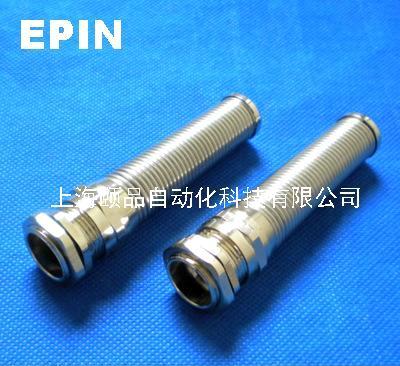

产品名称：EPIN带防弯折绷簧黄铜镀镍电缆接头/电缆护套/电缆填料函；
产品原料:A.C.F部位选用优质锌合金B.E部位选用丁腈橡胶制成，D部位选用白色尼龙制成
螺纹规格:公制（Metric）德制（PG）、美制（NPT），G制
工作温度:静态：-40℃~＋110℃短时可达＋120℃，动态：-20℃~＋80℃，短时可达＋100℃；
产品色彩:A.C.F部位为**，B.E部分为黑色，D部分为白色
防护等级:在规则的卡口规模内，并运用O形密封圈旋急迫紧头，防水达IP68
产品特性:特殊夹紧爪与密封件相扣之规划，带防弯折绷簧，合作迫紧头安装省时便当，
夹紧电缆规模大，抗拉力特强，可防水、防尘、防盐、耐酸碱、酒精、油、脂及一般溶剂。
运用方法:黄铜镀镍电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，
也能够依据选用螺纹接入进出口为内螺纹的电动设备上。
规格型号 (M制) | 电缆卡口规模(mm) | GL螺纹长度(mm) | H(mm) | AG螺纹外径(mm) | M.M |
M12 * 1.5 | 3-6.5 | 8 | 20 | 12.0 | 15 |
M12 * 1.5 | 2-5 | 8 | 20 | 12.0 | 15 |
M16 * 1.5 | 4-8 | 8 | 22 | 16.0 | 19 |
M16 * 1.5 | 2-6 | 8 | 22 | 16.0 | 19 |
M16 * 1.5 | 5-10 | 8 | 24 | 16.0 | 22 |
M16 * 1.5 | 3-7 | 8 | 24 | 16.0 | 22 |
M20 * 1.5 | 6-12 | 9 | 27 | 20.0 | 24 |
M20 * 1.5 | 5-9 | 9 | 27 | 20.0 | 24 |
M20 * 1.5 | 10-14 | 10 | 28 | 20.0 | 27 |
M20 * 1.5 | 7-12 | 10 | 28 | 20.0 | 27 |
M25 * 1.5 | 13-18 | 11 | 30 | 25.0 | 33 |
M25 * 1.5 | 9-16 | 11 | 30 | 25.0 | 33 |
M32 * 1.5 | 18-25 | 11 | 38 | 32.0 | 42 |
M32 * 1.5 | 13-20 | 11 | 38 | 32.0 | 42 |
M40 * 1.5 | 22-32 | 13 | 45 | 40.0 | 53 |
M40 * 1.5 | 20-26 | 13 | 45 | 40.0 | 53 |
M50 * 1.5 | 32-38 | 13 | 47 | 50.0 | 60 |
M50 * 1.5 | 25-31 | 13 | 47 | 50.0 | 60 |
M63 * 1.5 | 37-44 | 14 | 47 | 63.0 | 65 |
M63 * 1.5 | 29-35 | 14 | 47 | 63.0 | 65 |
规格型号 (Pg制) | 电缆卡口规模 (mm) | GL螺纹长度 (mm) | H(mm) | AG螺纹外径 (mm) | M.M |
PG7 | 3-6.5 | 8 | 21 | 12.5 | 15 |
PG7 | 2-5 | 8 | 21 | 12.5 | 15 |
PG9 | 4-8 | 8 | 22 | 15.2 | 19 |
PG9 | 2-6 | 8 | 22 | 15.2 | 19 |
PG11 | 5-10 | 8 | 25 | 18.6 | 22 |
PG11 | 3-7 | 8 | 25 | 18.6 | 22 |
PG13.5 | 6-12 | 9 | 17 | 20.4 | 24 |
PG13.5 | 5-9 | 9 | 17 | 20.4 | 24 |
PG16 | 10-14 | 10 | 28 | 22.5 | 27 |
PG16 | 7-12 | 10 | 28 | 22.5 | 27 |
PG21 | 13-18 | 11 | 31 | 28.3 | 33 |
PG21 | 9-16 | 11 | 31 | 28.3 | 33 |
PG29 | 18-25 | 11 | 39 | 37.0 | 42 |
PG29 | 13-20 | 11 | 39 | 37.0 | 42 |
PG36 | 22-32 | 13 | 48 | 47.0 | 53 |
PG36 | 20-26 | 13 | 48 | 47.0 | 53 |
PG42 | 32-38 | 13 | 48 | 52.5 | 60 |
PG42 | 25-31 | 13 | 48 | 52.5 | 60 |
PG48 | 37-44 | 14 | 49 | 59.3 | 65 |
PG48 | 29-35 | 14 | 49 | 59.3 | 65 |
规格型号(NPT) | 电缆卡口规模(mm) | GL螺纹长度(mm) | H(mm) | M.M |
3/8"NPT | 4-8 | 15 | 22 | 22/19 |
3/8"NPT | 2-6 | 15 | 22 | 22/19 |
1/2"NPT | 6-12 | 13 | 27 | 24 |
1/2"NPT | 5-9 | 13 | 27 | 24 |
1/2"NPT | 10-14 | 13 | 28 | 27 |
1/2"NPT | 7-12 | 13 | 28 | 27 |
3/4"NPT | 13-18 | 13 | 30 | 33 |
3/4"NPT | 9-16 | 13 | 30 | 33 |
1"NPT | 18-25 | 19 | 38 | 42 |
1"NPT | 13-20 | 19 |
|
