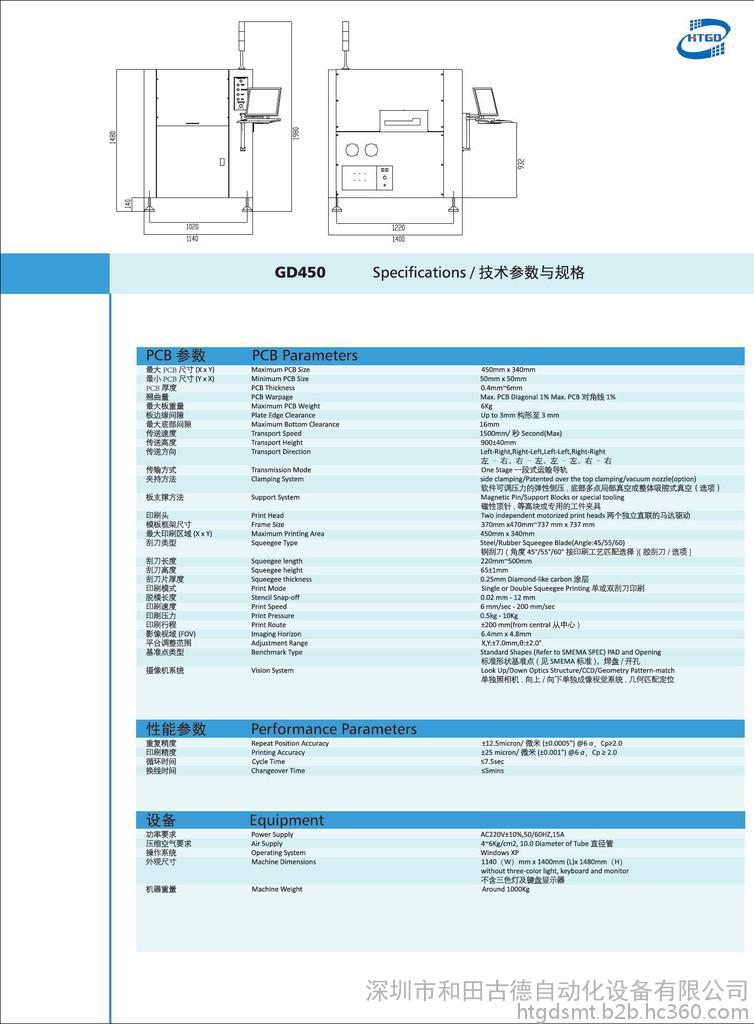

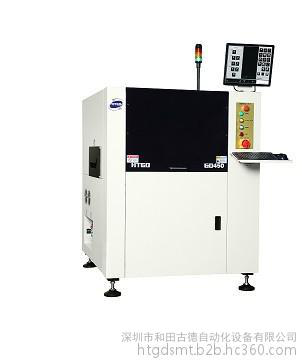

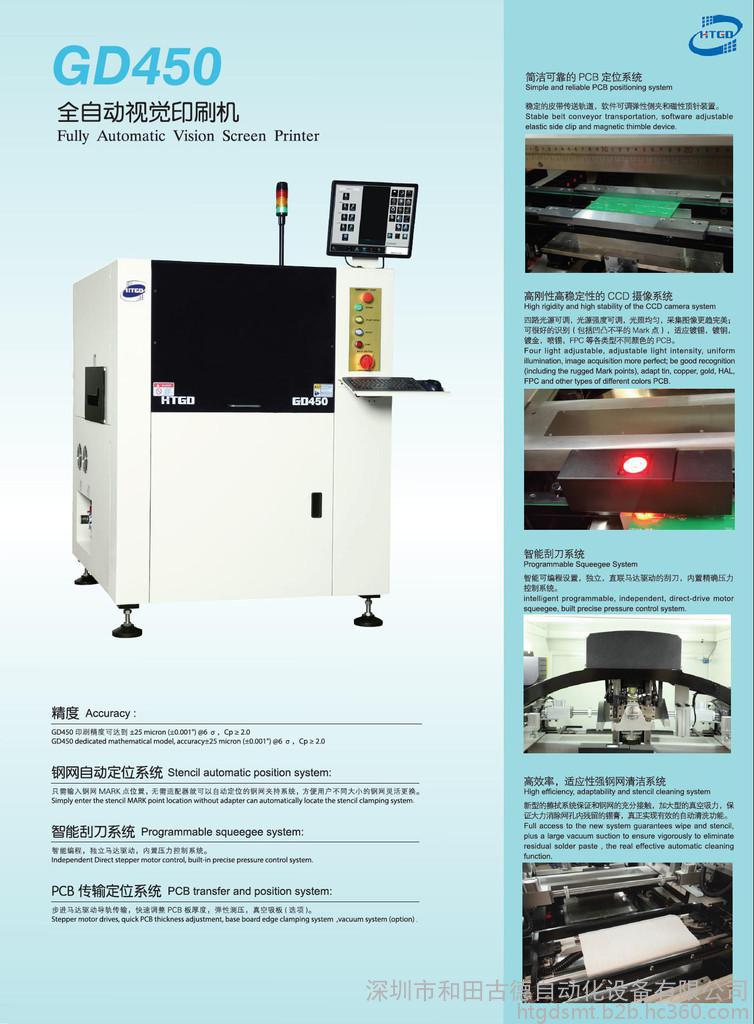

GD450 Technical Specifications 技术规格
|
|
PCB Parameters PCB 参数
|
|
Maximum PCB Size 最大板尺寸 (X x Y)
|
450mm x 340mm
|
|
Minimum PCB Size 最小板尺寸 (Y x X)
|
50mm x 50mm
|
|
PCB Thickness PCB厚度
|
0.4mm~6mm
|
|
PCB Warpage 翘曲量
|
Max. PCB Diagonal 1% Max. PCB对角线 1%
|
|
Maximum PCB Weight 最大板重量
|
6Kg
|
|
Plate Edge Clearance 板边缘间隙
|
Up to 3mm 构形至 3 mm
|
|
Maximum Bottom Clearance 最大底部间隙
|
16mm
|
|
Speed of Transmission 传送速度
|
1500mm/秒Second(Max)
|
|
Apart from the Ground Transmission Height 距地面的传送高度
|
900±40mm
|
|
Transfer Orbit Direction 传送轨道方向
|
Left-Right, Right-Left, Left-Left, Right-Right
左 – 右、右 – 左、左 – 左、右 – 右
|
|
Transmission Mode 传输方式
|
One Stage 一段式运输导轨
|
|
Clamping Direction of PCB 夹持方法
|
Top parallelogram plate institutions flatten software adjustable elastic pressure side pressure, the bottom of the overall multi-point partial vacuum or suction vacuum
顶部平行四边行压板机构压平,软件可调压力的弹性侧压,底部多点局部真空或整体吸腔式真空
|
|
Board Support Method 板支撑方法
|
Magnetic Pin/Contour Blocks/Special Workpiece Fixture
磁性顶针,等高块，专用的工件夹具
|
|
Printing Parameters 印刷参数
|
|
Print Head 印刷头
|
Two Single Direct Connection Motor Drive 两个独立直联的马达驱动
|
|
Form Work Frame Size 模板框架尺寸
|
370mm x 470mm~737 mm x 737 mm
|
|
Maximum Printing Area 最大印刷区域(XxY)
|
450mm x 340mm
|
|
Squeegee Type 刮刀类型
|
Steel/Rubber Squeegee Blade(Angle:45/55/60 or according to actual effect to set the angle)钢刮刀(角度45°/55°/60°按印刷工艺匹配选择)[胶刮刀/选项]
|
|
Length of Squeegee 刮刀长度
|
220mm~500mm
|
|
Height of Squeegee 刮刀高度
|
65±1mm
|
|
Thickness of Squeegee 刮刀片厚度
|
0.25mm Diamond-like carbon涂层
|
|
Printing Mode 印刷模式
|
Single or Double Squeegee Printing 单或双刮刀印刷
|
|
Stripping Length 脱模长度
|
0.02 mm - 12 mm
|
|
Printing Speed印刷速度
|
6 mm/sec - 200 mm/sec
|
|
Printing Pressure印刷压力
|
0.5kg - 10Kg
|
|
Printing Stroke 印刷行程
|
±200 mm(from central从中心)
|
|
Image Parameters 影像参数
|
|
Imaging Horizon 影像视域 (FOV)
|
6.4mm x 4.8mm
|
|
Adjustment Range 平台调整范围
|
X,Y:±7.0mm,θ:±2.0°.
|
|
Benchmark Type 基准点类型
|
Standard Shapes (Refer to SMEMA SPEC) PAD and Opening
标准形状基准点 (见SMEMA 标准)，焊盘 /开孔
|
|
Camera System 摄像机系统
|
Single camera ,up/down single imaging visual system, geometric matching orientation
单独照相机 , 向上 / 向下单独成像视觉系统,几何匹配定位
|
|
Performance Parameters 性能参数
|
|
Calibration Repeat Precision 影像校准重复精度
|
±12.5micron/微米 (±0.0005") @6 σ，Cp≥2.0
|
|
Printing Repeat Precision 印刷重复精度
|
±25 micron/微米 (±0.001") @6 σ，Cp ≥ 2.0
|
|
Cycle Time 循环时间
|
≤7.5s
|
|
Changeover Time 换线时间
|
≤5mins
|
|
Equipment 设备
|
|
Power Requirement 功率要求
|
AC220V±10%,50/60HZ,15A
|
|
Compressed Air Requirement压缩空气要求
|
4~6Kg/cm2, 10.0 Diameter of Tube直径管
|
|
Operating System 操作系统
|
Windows XP
|
|
Outline Dimension 外观尺寸
|
1140mm(W) x 1400mm(L) x 1480mm(H)
|
|
Weight of Printer 机器重量
|
1000Kg
|
